Production Analysis

Evaluate and optimize the performance of oil and gas wells

These specialized instruments provide critical data on various aspects of well production helping operators to make informed decisions on reservoir management and productions strategies. These technologies include, advanced reservoir performance monitoring, single or multi-phase production logging, injection profiling, or diagnostic applications such as leak detection or identification of water influx point.

Measures borehole diameter with excellent accuracy, stability, and repeatability

3-Arm Caliper

The motorized 3-arm caliper tool measures borehole diameter with excellent accuracy, stability, and repeatability.

3-Arm Caliper

Measures gas/fluid refractive index for accurate gas quantification

Optical Array Gas Holdup Tool

The optical array gas holdup tool consists of six optical sensors. Both gas holdup and bubble count are provided by each sensor.

Optical Array Gas Holdup Tool

Combines fluid velocity and fluid identification into a compact tool

Combined Capacitance Flow and Temperature Tool

Offers a reduced-length, multiple-sensor solution for production profiling. All standard fixed-cage spinners and full-bore spinners are compatible with the CFT tool.

Combined Capacitance Flow and Temperature Tool

Measures wellbore temperature using a platinum resistance thermometer in a low-mass Inconel® tube

Fast-Response Temperature Tool

This tool provides an accurate, rapid response, and high-resolution temperature measurement that is essential to production logging and leak detection.

Fast-Response Temperature Tool

Provides selectable fluid velocity

Fixed-Cage Spinner Mechanical Impeller

The impeller is run in combination with either the flow and temperature electronics tool or with the combined capacitance, flow and temperature tool.

Fixed-Cage Spinner Mechanical Impeller

Measures wellbore qualitative fluid identification data

Flowmeter and Temperature Electronics Tool

The tool is used in with both the full-bore spinner and the fixed-cage spinner mechanical impeller and provides 10 pulses per revolution flowmeter output and a fast-response PRT measures wellbore temperature.

Flowmeter and Temperature Electronics Tool

Provides qualitative fluid identification data

Fluid-Capacitance Tool

Provides an indication of fluid type surrounding the sensor by measuring the dielectric constant of the fluid between the sensor and tool body. Used in combination with other sensors, it provides qualitative fluid identification data.

Fluid-Capacitance Tool

Measures fluid density in the measurement window of the tool

Fluid Density Tool

Uses a double-encapsulated, low-energy AM241 source and scintillation-detector assembly to measure fluid density in the measurement window of the tool.

Fluid Density Tool

Provides variable-bore size access for fluid velocity measurement

Full-Bore Spinner Mechanical Tool

Combines flowmeter sensor electronics with a fast-response temperature tool or with the combined capacitance, flow and temperature tool.

Full-Bore Spinner Mechanical Tool

Enables calibrated cased-hole formation evaluation and correlation

Gamma Ray Tool

The gamma ray tool is compact, robust, and accurate. It precisely measures natural gamma-ray flux in a wellbore.

Gamma Ray Tool

Provides a continuous flowmeter log while in tubing

In-Line Flowmeter

Provides a secondary/back up flowmeter to the full bore or fixed cage spinners while logging in casing or liners.

In-Line Flowmeter

Determines flow conditions, flow profiles, fluid flow, fluid injection and production rates

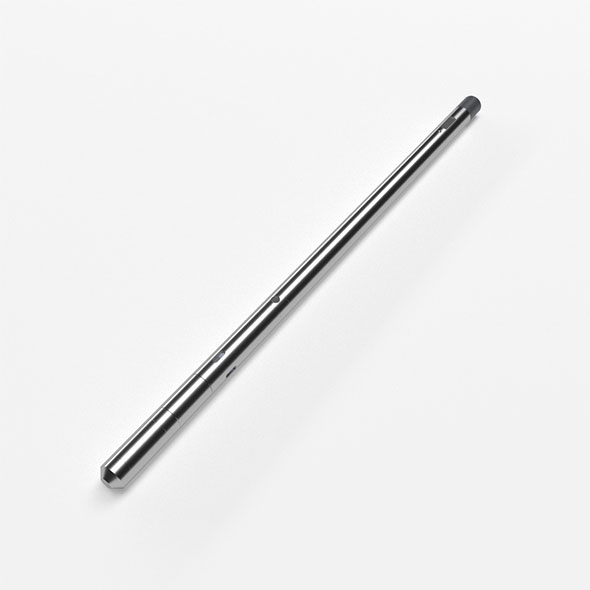

Motorized Ejector Tool

Assists in the location of leakage in pipes, across packers and fluid movement behind production strings.

Motorized Ejector Tool

Correlates casing or tubing collars for depth accuracy

Casing Collar Locator – Probe® Telemetry (PTX) Slim Production Logging Suite

This is dual-magnet, center-coil device with powered amplified signal provides maximum sensitivity to identify collars in larger casing sizes.

Casing Collar Locator – PTX Slim Production Logging Suite

Correlates casing or tubing collars for depth accuracy

Casing Collar Locator – AES Grounded

The casing collar locator correlates casing or tubing collars for depth accuracy.

Casing Collar Locator – AES Grounded

Provides wellbore pressure and gauge temperature

Quartz Pressure Tool

Uses a precision digital quartz pressure transducer to provide wellbore pressure and gauge temperature and continuous measurement of well pressure during dynamic passes, or dynamic pressure build-ups or drawdowns.

Quartz Pressure Tool

Provides continuous downhole tension and compression measurement during logging

Tension and Compression Tool

Prevents damage to wireline cable or logging tool string, and can be deployed on electric line, slickline, and coiled tubing.

Tension and Compression Tool

Provides an industry-standard fluid-density measurement based on vibrating-fork technology

Tuning-Fork Density Tool

A nonradioactive fluid identification tool that is not affected by well inclination.

Tuning-Fork Density Tool

Measures borehole size and provides two independent caliper curves simultaneously

X-Y Caliper Tool – Digital with Temperature Tool

Measures borehole irregularities such as oval shapes, large washouts, or extreme restrictions more accurately than conventional 2- or 3-arm caliper tools.

X-Y Caliper Tool – Digital with Temperature Tool

Provides fast-response well-temperature profile and casing ID with two continuous independent perpendicular measurements

Ultrahigh Temperature Dimension™ X-Y Caliper Tool

Is a geothermal memory tool that provides a fast-response well-temperature profile and two continuous independent perpendicular measurements of casing internal diameter.

Ultrahigh Temperature Dimension X-Y Caliper Tool

Provides continuous measurement of independent X and Y internal tubular diameters by means of measurement arms set at 90° apart

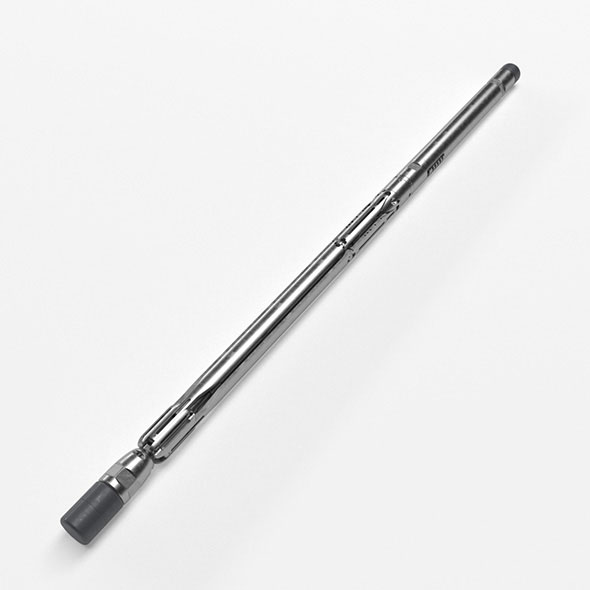

X-Y Caliper HD Tool (High-Speed Digital)

The tool closes to 1.69 in. and opens to 9.00 in., enabling use in both tubing and casing up to 9-5/8 in. OD.

X-Y Caliper HD Tool (High-Speed Digital)

Measures array fluid velocity, resistivity, and capacitance

Array Fluid Velocity Resistance Capacitance Tool

The array fluid velocity resistance capacitance tool is a compact 6-arm multi- sensor array production logging tool. Each arm provides three measurements via a fluid velocity sensor, and a co-located fluid resistance and fluid capacitance sensor.

Array Fluid Velocity Resistance Capacitance Tool
