Real Results

Performance By The Numbers

Drilling Services

Perform Vertical Pass-By Ranging to 3 Wells on a Single Lateral Leg

Objectives

Drill a 6-leg multilateral well in a heavy oil reservoir in Alberta, with one leg required to be drilled in close proximity to three vertical wells.
Prevent wellbore collisions and maintain a planned separation of 32.8 ft (10 m).

Our Approach

Weatherford field personnel deployed a bottomhole assembly comprising of the following equipment: a rotating magnetic ranging system, the enhanced electromagnetic (EM) HEL system, the MFR tool, the HAGR tool, the dual IDS tool, and the Hyperline 250 drilling motor.
The combination of the non-magnetic drilling motor and the dual IDS tool enabled close-to-bit continuous dynamic rotating inclination, ensuring precise directional placement of the drilling well.
Weatherford wireline services deployed the DeepGuide sensor inside three offset vertical wellbores and used it to conduct gyro surveys of the three wells, thereby reducing positional uncertainty.

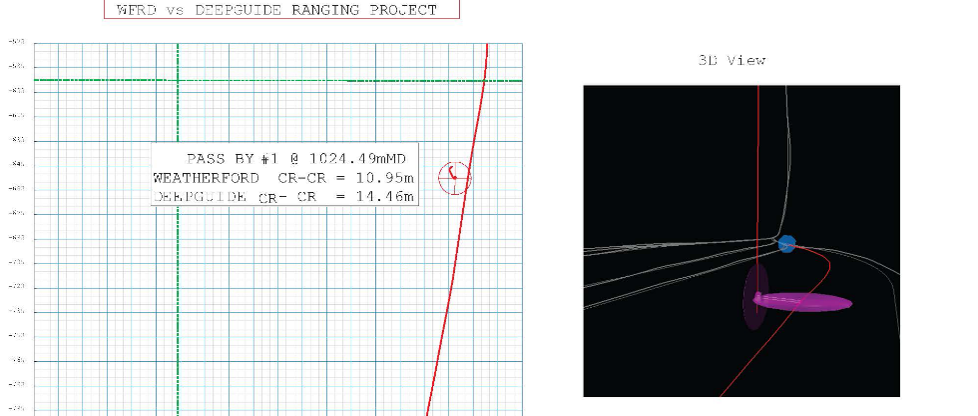

The DeepGuide system provided accurate magnetic measurements to ascertain the proximity of the drilling well to the offset vertical wellbores.

Value to Customer

Weatherford expertise and technology enabled accurate measurements of distances to offset vertical observation wellbore to prevent any collisions or damages to either wellbore.
The results accurately measured separation distances between wells for monitoring purposes.

Learn More

Drilling Services

Details

Location

Canada

Well Type

Heavy oil, horizontal, multilateral

Hole Size and Angle

8-3/4 in. (222 mm), 90°

Casing Size

9-5/8 in. (244.5 mm) intermediate string

Temperature

116°F (47°C)

Depth

BHA in: 2,595 ft (791 m), 90.14°
BHA out: 5,498 ft (1,676 m), 90.50°
