In-Line Flowmeter
Provides a continuous flowmeter log while in tubing
Applications
- Production logging flow and injection profiling
Features and Benefits
- Combines with high-speed digital (HD) telemetry platform production logging services
- Provides flow measurement when placed anywhere in the toolstring
- Features variable sizes for compatibility with minimum wellbore restriction
Tool Description

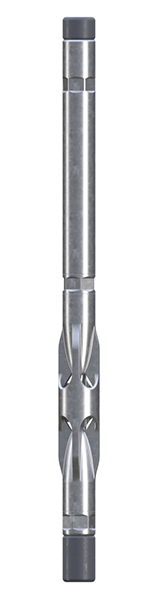

The Weatherford in-line flowmeter is a compact tool that provides a continuous flowmeter log while in tubing. It acts as a secondary or back-up flowmeter to the full-bore or fixed-cage spinners while logging in casing or liners. Available in three sizes, the flowmeter is robust, reliable, and simple to service.
As with all HD tools, the internal temperature is recorded to nonvolatile memory that enables maintaining detailed temperature exposure records.
Specifications
Ratings and Dimensions
Outside diameter | 1.69 in. (43.3 mm) | 2.125 in. (54 mm) | 3.15 in. (80.01 mm) |
Weight | 10.3 lb (4.7 kg) | 11 lb (5 kg) | 12.1 lb (5.5 kg) |
Length | 25.4 in. (8.5 mm) | ||
Maximum temperature | 350°F (177°C) | ||
Maximum pressure | 15,000 psi (103.4 MPa) | ||
Flow measure point | 10.96 in. (278 mm) | ||
Sensor Measurement
Output | 10 pulses per revolution |
Threshold | 10 ft/min (3 m/min) |
Maximum fluid velocity | 3,000 ft/min (916 m/min) |
Hardware Characteristics
Combinability | All HD tools (RADii®, iQ™, PL, RAS™) |
Materials | Corrosion-resistant materials throughout |
Acquisition mode | Real time with telemetry control (TCU) |
Electrical
Current | 6mA at 50 V |
